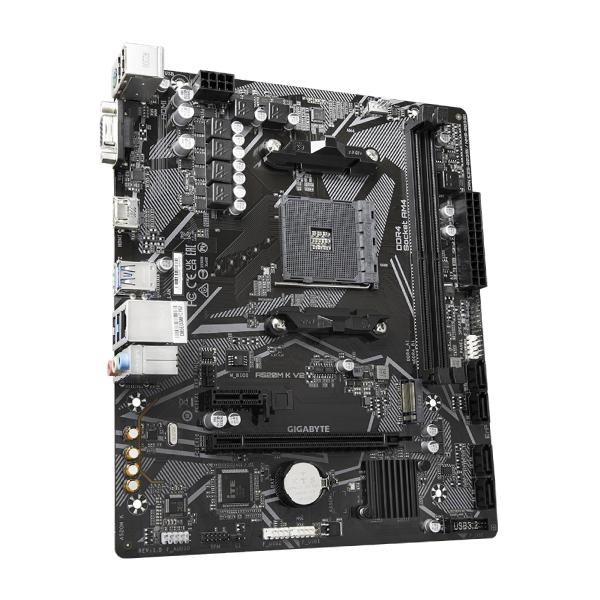

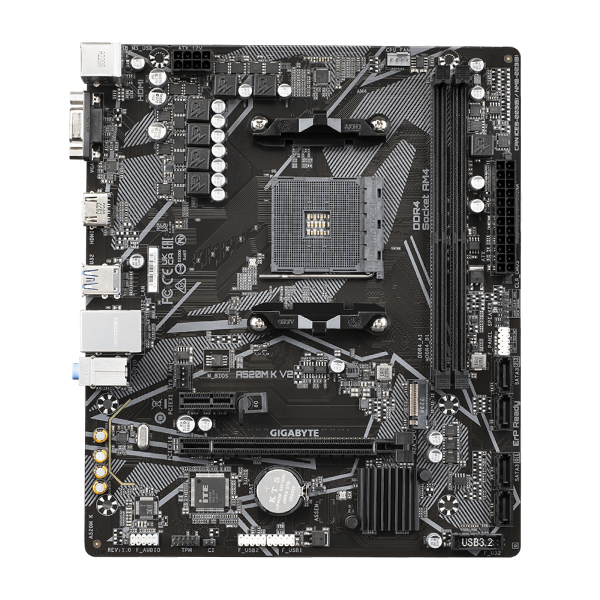

Motherboard Gigabyte A520M K V2 Socket AM4
Motherboard Gigabyte A520M K V2 Socket AM4 - Imagen 2
Motherboard Gigabyte A520M K V2 Socket AM4 - Imagen 3
Motherboard Gigabyte A520M K V2 Socket AM4 - Imagen 4

Motherboard Gigabyte A520M K V2 Socket AM4

  • Procesador
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

    (Please refer «CPU Support List» for more information.)

  • Chipset
    1. AMD A520
  • Memoria
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer «Memory Support List» for more information.)

  • Gráficos Integrados
    Integrated Graphics Processor:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Puertos de Expansión
    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

    Chipset:

    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Interfaz de Almacenamiento
    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, and RAID 10

  • USB
    CPU:

    1. 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Conectores Internos de E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    12. 1 x speaker header
    13. 1 x Clear CMOS jumper
    14. 1 x chassis intrusion header

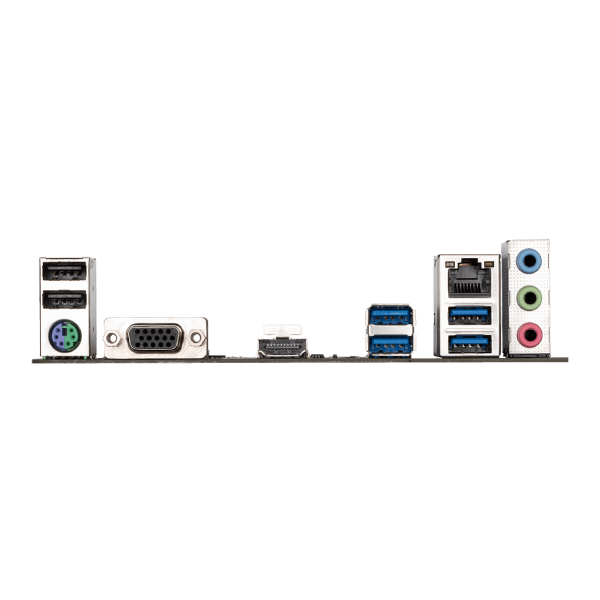

  • Conectores del Panel Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • Controlador de E/S
    1. iTE® I/O Controller Chip

$ 111.717
