Características
Graphics Processing GeForce RTX™ 2060
Core Clock 1680 MHz
RTX-OPS 36
CUDA® Cores 1920
Memory Clock 14000 MHz
Memory Size 6 GB
Memory Type GDDR6
Memory Bus 192 bit
Memory Bandwidth (GB/sec) 336 GB/s
Card Bus PCI-E 3.0 x 16
Digital max resolution 7680×4320
Multi-view 4
Card size L=225.65 W=122.02 H=40.5 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Recomme nded PSU 500W
Power Connectors 8 Pin*1
Output DisplayPort 1.4 *3
HDMI 2.0b *1
Especificaciones
Graphics Processing GeForce RTX™ 4060 Ti (8GB)
Core Clock 2550 MHz (Reference Card: 2535 MHz)
CUDA® Cores 4352
Memory Clock 18 Gbps
Memory Size 8 GB
Memory Type GDDR6
Memory Bus 128 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=201 W=120 H=41 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 500W
Power Connectors 8 pin*1
Output DisplayPort 1.4a*2
HDMI 2.1a*2

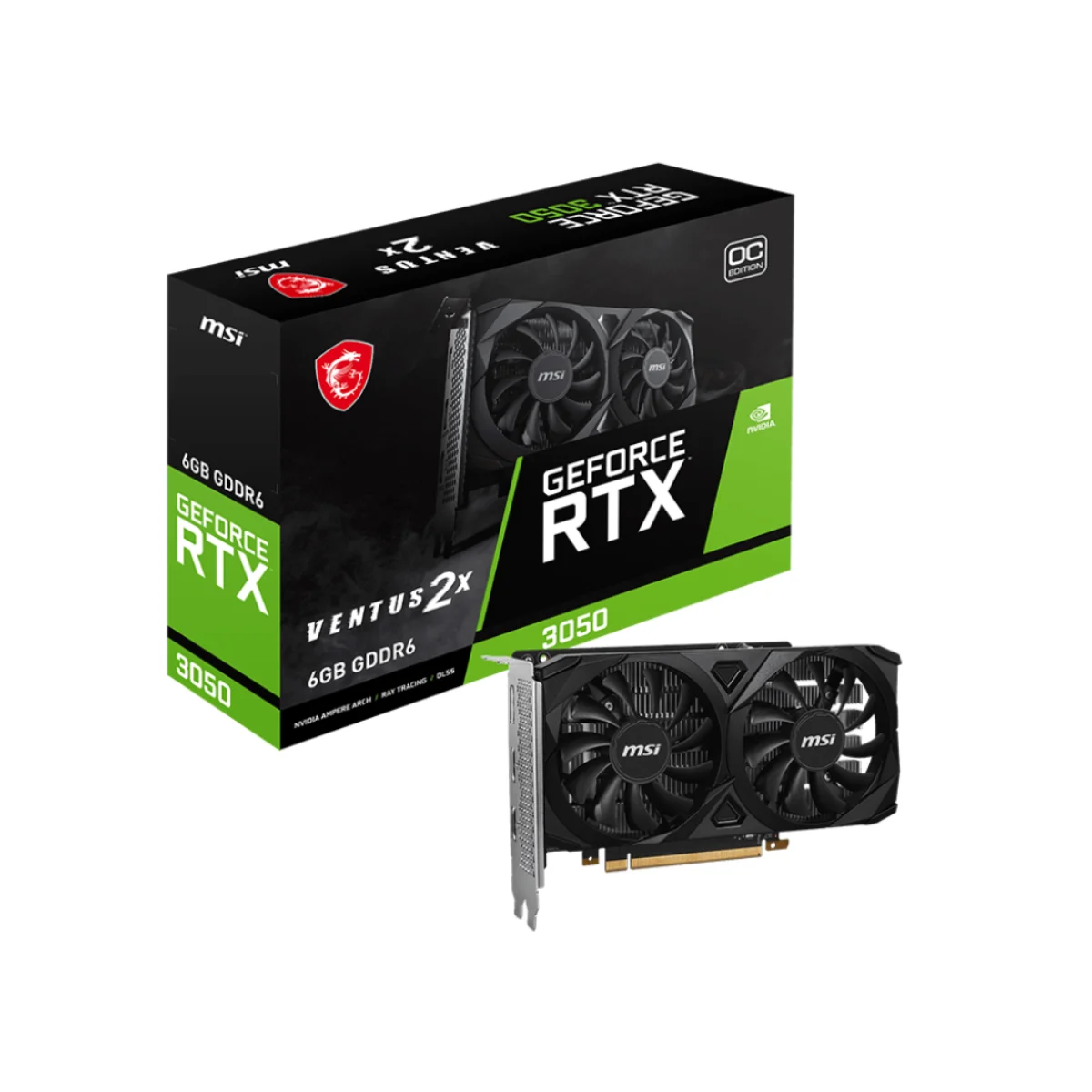

Graphics Processing GeForce RTX™ 3050
Core Clock 1477 MHz (Reference Card: 1470 MHz)
CUDA® Cores 2304
Memory Clock 14000 MHz
Memory Size 6 GB
Memory Type GDDR6
Memory Bus 96 bit
Card Bus PCI-E 4.0
Digital max resolution 7680×4320
Multi-view 4
Card size L=191 W=111 H=36 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 300W
HDMI 2.1*2
Características
MODEL NAME GeForce RTX 2060 VENTUS GP OC
GRAPHICS PROCESSING UNIT NVIDIA® GeForce RTX™ 2060
INTERFACE PCI Express x16 3.0
CORE CLOCKS Boost: 1710 MHz
CUDA® CORES 1920 Units
MEMORY SPEED 14 Gbps
MEMORY 6GB GDDR6
MEMORY BUS 192-bit
DisplayPort x 3 (v1.4a)
OUTPUT HDMI x 1 (Supports 4K@60Hz as specified in HDMI 2.0b)
HDCP SUPPORT 2.2
POWER CONSUMPTION 160 W
POWER CONNECTORS 8-pin x 1
RECOMMENDED PSU 500 W
CARD DIMENSION (MM) 231 x 128 x 42 mm
WEIGHT (CARD / PACKAGE) 720 g / 1170 g
DIRECTX VERSION SUPPORT 12 API
OPENGL VERSION SUPPORT 4.6
MAXIMUM DISPLAYS 4
VR READY Y
G-SYNC® TECHNOLOGY Y
DIGITAL MAXIMUM RESOLUTION 7680×4320
Especificaciones
General
GPU NVIDIA GeForce RTX 5070 Ti
Arquitectura Blackwell (GB203)
Núcleos CUDA 8960
Frecuencia Base 2295 MHz
Frecuencia Boost 2482 MHz
Frecuencia Extrema 2497 MHz (MSI Center)
Interfaz PCI Express 5.0 x16
Memoria 16 GB GDDR7
Interfaz de Memoria 256 bits
Velocidad 28 Gbps
Ancho de Banda 896 GB/s
Conectividad
Salidas 1x HDMI 2.1b, 3x DisplayPort 2.1b
Resolución Máxima 7680 x 4320
Monitores Soportados Hasta 4
Energía Consumo 300 W
Fuente Recomendada 750 W
Conectores 1 x 16 pines
Dimensiones
Tamaño 303 x 121 x 49 mm
Ranuras Ocupadas 2
Peso 1073 g
- Motor Grafico: GT 210
- Bus: PCIe x16 2.0
- Tamaño de Memoria: 1024Mb
- Salidas: 1 x DVI | 1 x VGA | 1 x HDMI
- Resolución Máxima: 2560 x 1600 px
- DirectX: 10.1
- OpenGL: 3.1
- Refrigeración: Fansink
*Los precios publicados son para pago en efectivo o transferencia*
